Where particular locations and hazards need emergency illumination, BS5266 Part 10 sets out levels of illuminance that must be achieved. To meet these, P4‘s high intensity single LED can provide the required illuminance. MonoLED can either be recessed or surface mounted, using a single 3W white LED enclosed behind a polycarbonate cover. This is either white for general installation, red to highlight fire equipment or green for first aid/accessibility equipment.
| Product Details | Value |
|---|---|
| FASTEL Stand Alone | MONO/RC/S/M3/WH Recessed mount MONO/SC/S/M3/WH Surface mount MONO/CC/S/M3/WH Conduit surface mount MONO4/RC/S/M3/WH Recessed mount 4 cell MONO4/SC/S/M3/WH Surface mount 4 cell MONO4/CC/S/M3/WH Conduit surface mount 4 cell |
| FASTELink M-web | MONO/RC/SRM/M3/WH Recessed mount MONO/SC/SRM/M3/WH Surface mount MONO/CC/SRM/M3/WH Conduit surface mount MONO4/RC/SRM/M3/WH Recessed mount 4 cell MONO4/SC/SRM/M3/WH Surface mount 4 cell MONO4/CC/SRM/M3/WH Conduit surface mount 4 cell |
| FASTEL SRM | MONO/RC/SRM/M3/WH Recessed mount MONO/SC/SRM/M3/WH Surface mount MONO/CC/SRM/M3/WH Conduit surface mount MONO4/RC/SRM/M3/WH Recessed mount 4 cell MONO4/SC/SRM/M3/WH Surface mount 4 cell MONO4/CC/SRM/M3/WH Conduit surface mount 4 cell |
| FASTEL Wireless | MONO/RC/FW/M3/WH Recessed mount MONO/SC/FW/M3/WH Surface mount MONO/CC/FW/M3/WH Conduit surface mount |
| Alternative Voltage Options | MONO/RC/230/WH Recessed mount (230V Mains or Static Inverter) MONO/SC/230/WH Surface mount (230V Mains or Static Inverter) |
| Product Standard | BSEN 60598-2.22 |
| Compliance | BSEN 60598-2.22 |
| IP Rating | IP20 or IP54 with optional clear polycarbonate cover: product code LCL |
| Lamp Type/Light Source | 1 X 1 Watt high intensity white LED |

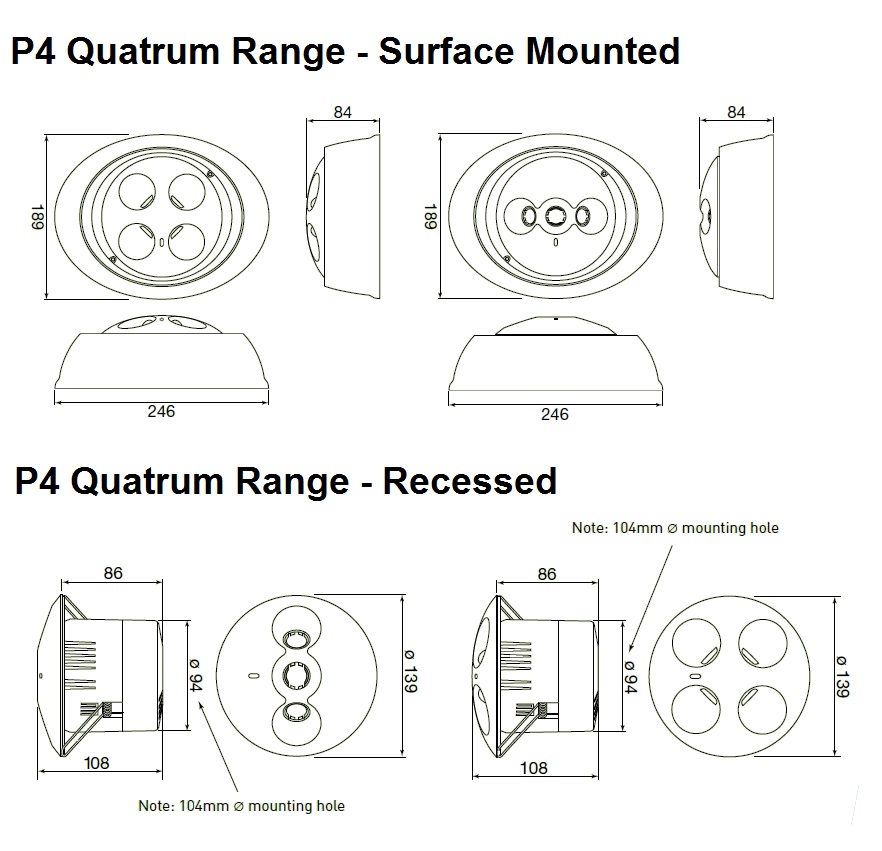

| Dimensions | View Dimensions |
| Suitable Locations | Hazardous areas and high importance emphasis points such as fire equipment |
| Max Viewing Distance | N/A |
| Spacing Data | View Spacing Data |
| Mounting | Ceiling |
| Surface or Recessed | Recessed or Surface |
| Colour Options | White for general installations. /R: Red for fire equipment or /G: Green for first aid/accessibility equipment |
| Diffuser | N/A |
| Photocell Compatible | No |
| Legend Panel | N/A |
| Anti-Ligature Option | Yes |
| Input | 230V ± 10% 50/60Hz |
| Audible Warning | Yes |
| Mode/Duration | Maintained, 3 hours. (Optional non maintained operation.) |
| Battery Recharge Periods | Full Duration - 24 hours. Full Capacity - 48 hours. |
| Weight | 480gm |
| Material | Polycarbonate |
| Cut Out Size | 104mm diameter |
| Cableset Compatible | Yes |
| Fitting Instructions | Quatrum Range Ceiling Tile Protector Fitting InstructionsSurface Mounted Quatrum Range Fitting Instructions |
(Recessed*/ Surface*) mounted LED emergency lighting luminaire with high intensity white 1 Watt LEDs mounted in a RAL9016 white, low profile fascia plate with purpose designed lenses, suitable for (escape route*/ anti panic open area*/ specific hazard*) illumination. Class II insulated, all plastic housing of flame retardant ABS complying with 850° hot wire test.
Recessed mounted to be retained into 104mm dia. mounting hole in ceilings of 1mm to 24mm thickness by spring clips. Surface mounted, fixed to ceiling by zinc plated steel mounting plate with conduit and BESA box cable entries.
230V+10% a.c 50/60 Hz input.
Rechargeable NiCd Battery for three hours emergency duration and incorporates fully automatic self testing facility and status indication through a single multi function bi-colour LED indicator.
All emergency lighting versions to be (FASTEL stand alone*/FASTELink*/ FASTEL Wireless*)
As P4 Quatrum (insert code)
(*Delete as appropriate)
